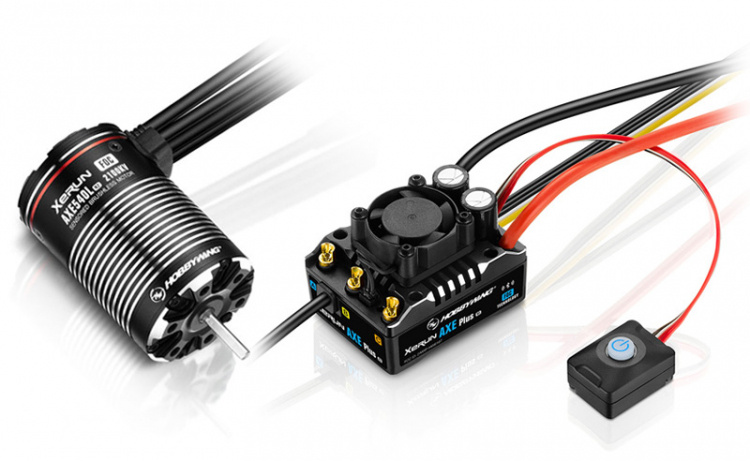

Hobbywing HW38020385 - AXE PLUS R3 ESC + AXE 540L R2 1400kV 2-3S Crawler Combo
AXE PLUS R3 2-6S Crawler ESC
6S high-power crawler ESC:- The ESC supports up to 6S LiPo battery
- It has a maximum output continuous current of up to 135A
- The AXE R3 can be used on 1/10th and 1/8 crawler, also compatible with 1/7 & 1/6 crawlers
- New compact design
- Compatible with all Axe R2 motors
- Note: The AXE R3 is 2.1mm longer, 1.7mm wider and 3.7mm shorter than the R2 ESC.
Dual external control channels, real-time adjustment of parameters
Connect the white and yellow signal cables to open channels of the receiver to adjust parameters in real time.
FOC drive, linear, with plenty torque, and very quite
The XeRun AXE R3 is equipped with a FOC drive system. The large torque and excellent linearity when operating at low speed further exceeds ordinary brushless power systems and out performs brushed power systems. The XeRun AXE R3 is nearly silent, and it’s the perfect choice for crawling vehicles.
Smart torque output, easy to control
The ESC automatically increases the torque output to overcome resistance and accelerate up the hill. Vice versa, the ESC automatically reduces the torque output and stabilizes the vehicle speed when going down the hill. Provides excellent control going Up, or Down hills.
The ESC is powerful, with excellent linear control, which can meet the needs of the vehicle's low-speed climbing while also meeting the needs of violent start-up lifting, straight-line high speed, etc.
Smart fan start and stop function
The fan starts to operate automatically ONLY when the ESC temperature reaches the preset value. The smart start and stop function of the fan helps to save power, reduce noise, and also ensures that the ESC works in a good temperature range.
High protection level
The AXE R3 brushless system is now IP67 protected. It has excellent waterproofing and dust-proofing performance to cope with various climatic conditions.
Note: The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may decrease due to aging. Do not submerge in water for a long time, otherwise the product may be damaged.
Super Internal BEC
It has a built-in powerful BEC with a maximum output current of 15A. The voltage is switchable between 6V/7.4V/8.4V and is suitable for various standard/high-voltage servos and peripheral electrical equipment on the market (such as light sets, winches, etc.).
Built-in Bluetooth for Connecting the Mobile APP Directly
The ESC has a built-in Bluetooth module. Parameter settings, data reading, firmware upgrade and other operations can be achieved by connecting the device to the mobile APP.
Obtain AXE Running Status with Real-time Data Function with ease
Connect the ESC to the HW Link mobile app and turn on the real-time data function. You are able to view throttle, voltage, current, temperature, speed and other data in real time, and obtain the ESC and motor operating status with ease.
Note: The effective distance is only about 5m due to transmission distance of bluetooth.
Built-in data logging function, ease of obtaining power operating status
The ESC has a built in data recording module. Store up to 10 minutes of your most recent run. Using the HW Link V2saved to the ESC. saved to the ESC. In addition, the module allows you to view Time Data from the ESC for bench top testing and viewing of the data outputs.
Note: Due to transmission distance of bluetooth, the effective distance is only about 5m!
Compatible with AXE R2 motors
AXE R3 ESC supports both AXE 4274 R3, and AXE 550/540L/540 R2 motors.
Note: AXE R2 motor, 2800KV/2100KV/1400KV/2300kv are recommended to use on 3-4S.
Supports Flysky i-BUS2 Telemetry
Achieve real-time ESC parameter adjustments using the I-BUS2 Telemetry on the Flysky NB4 controllers. Additionally, the data return function has been implemented to the Flysky NB4 remote controllers. You will be able to view data such as; battery voltage, motor speed, operating current, ESC/motor temperature, etc in real time on the remote control.
Note: You are required to upgrade to the latest firmware on your remote control in order to use the I-bus2 functions.
A vast variety of parameters
The XeRun AXE R3 has a vast variety of parameters for adjustment. It has a total of 21 adjustable parameters and supports 24-degree adjustable Turbo timing. The maximum speed can be unleashed with good road conditions.
ESC Specs:
- Scale: 1/10, 1/8, 1/7 & 1/6
- Type: Brushless, sensored waterproof Crawler ESC
- Cont./Peak Current: 135A/600A
- Input Voltage: 2-6S LiPo (2-3S in this combo)
- BEC Output: Switch Mode 6V/7.4V/8.4V @6A
- Input Wires: 12AWG-265mm
- Output Wires: No
- Input Connectors: XT60
- Output Connectors: No
- Size: 49.5x37.9x32.8mm (Height with fan)
- Weight: 126.5g (Including the weight of input line)
- Fan Size: 25x25x10mm
- Fan Voltage Range: 6-8.4V
- Fan Powered by: BEC
- Firmware Upgrade: Supported
ESC Programing via:
- SET Button on ESC: Not Supported
- LED Program Box: Not Supported
- LCD G2 Program Box: Not Supported
- LCD PRO: Not Supported
- OTA Programmer: Not Supported
- Program Port: Built-in bluetooth
Data Recording:
- Extreme value: Supported
- Real-time Data: Supported
- Historical data (Graph): Supported
Applications:
- Motors: Only supports XERUN AXE R2/R3 motors
- Vehicles: 1/10, 1/8, 1/7 & 1/6 Rock Crawlers
- KV Rating/T Count: AXE R2 540/540L/550 & AXE R3 4274
Hobbywing XeRun AXE540L R2 Sensored Crawler Motor 1400KV
Applicable to All Weather & Track Conditions
Waterproof has been taken to a new level with the Axe System. Completely sealed ESC design with robust heatsink case design ensure the ESC is ready for anything you throw at it. The motor as well, is sealed, and combines a completely new sensor harness. No messy extra steps to make your system water proof. (Note: please dismantle and clean the motor and put some lubricant onto the bearings after using it in some harsh conditions.)
Built-in High-precision Magnetic Encoder
A high precision magnetic encoder is used in the motor to ensure precision and consistent information is provided to the ESC. This allows the ESC to have more information from the motor than standard “hall” type sensors and provides improved performance and efficiency.
Low Cogging Torque
The AXE R2 Motors have the extremely low cogging effect and torque pulsation.
New Waterproof Sensor Port
The brand new design of new waterproof sensor port has smaller size. Its wiring is simpler and more beautiful than AXR R1 system.
Specs:
- Applications: 1/10 Crawlers
- Type: Brushless/Sensored
- Compatibility: Use only with the AXE R2/R3 ESC
- Pole Count: 4
- KV Rating: 1400
- LiPo cells: 2-3S
- No Load: 1.7A
- Diameter: 36mm
- Length: 57.8mm
- Shaft Diameter: 3.175mm
- Weight: 232g
