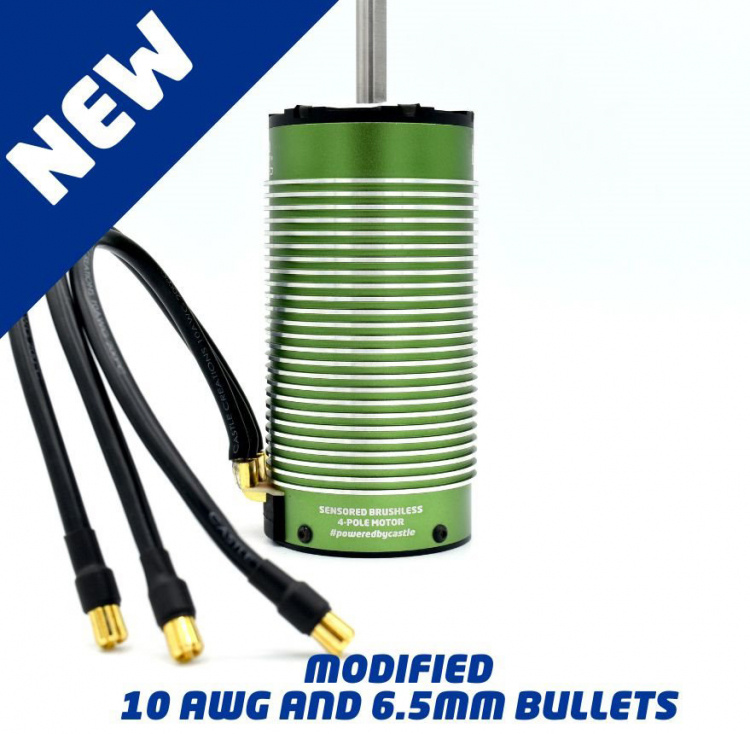

Castle 2028 Sensored Motor - 800Kv (MOD 6.5mm Bullets / 10AWG Wire)
You might be familiar with the brute 1/5 scale version of the 2028-800Kv (8AWG wire and 8mm bullets) that has overpowered large scale RC for years. Now we are offering our 1/6 scale version (paired with 010-0165-01 MAMBA MONSTER X 8S, 33.6V ESC W/2028-800KV SENSORED MOTOR, click here for details), tailored with presoldered 6.5mm bullet connections and 10AWG wire!The Castle 2028 Extreme 800KV motor now has an IMPROVED 4-POLE 12-SLOT design that boasts exceptional EFFICIENCY and produces LESS HEAT. If you need LARGE-SCALE POWER for LARGE-SCALE VEHICLES the new BRUSHLESS SENSORED 2028-800KV motor will no doubt hold up to the heavy throttle and extended usage that 1/6th scale vehicles encounter.
- Running modes include Sensored and an ULTRA-EFFICIENT sensorless mode.
- High-strength, high-temperature grade neodymium sintered magnets combined with High-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
- Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible.
- Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
- Dual sensor ports to ensure optimal installation in your large-scale vehicle.
- Updated modern and sleek design; looks as cool as it performs.
Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the HIGHEST EFFICIENCY possible. In the end, the result is a motor with unmatched quality, performance, and reliability. We wouldn’t put our name on anything less.
Technical Specs:
- Input Voltage Range: 8S MAX (with 10 AWG and 6.5mm Bullets)
- Kv: 800
- Max. RPM: 45,000
- Size: Length: 112.7mm
- Diameter: 56.3mm
- Weight (w/wires): 1.25kg
- Shaft Size: Length: 30mm
- Diameter: 8mm
- Mounting Hole Specifications: 4mm @ 30mm
- Cooling Fan: Available, but not included.
- Connectors: 6.5mm male connectors, 250mm sensor wire and 10AWG wires
- Items Needed for Operation: Compatible Electronic Speed Control (ESC) (see Recommended ESC(s) below)
Product Use Statements:
- Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 82° C on the the motor or ESC.
- Do not use mounting screws that extend more than 5mm into the front of the motor. Using too long of a screw can result in damage to the motor's windings and will not be covered by the warranty.
Application Guidelines:
- Perfect upgrade for any 1/6 scale vehicles weighing up to 11kg and up to 8s LiPo.
- Recommended ESC(s): Mamba Monster X 8S
- Max. Recommended Vehicle Weight: 11kg
Tech Notes:

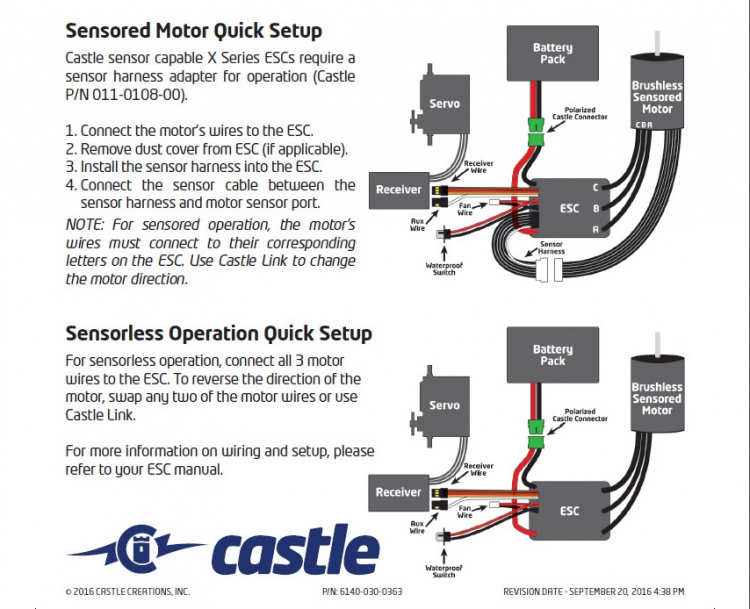

- Running modes: Sensorless and Sensored
- The 2028-800KV is a water resistant design. The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. We recommend applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
