RPM 80565 - True-Track Bakvagnssats till Revo 3.3 & Revo (gml) - Blå
Quick Notes:
- Fits both the Revo 3.3 and E-Revo (does not fit the E-Revo 2.0)
- Replaces stock Traxxas #5331, #5332 & #5334
- 32 grams lighter than stock components!
- Perfect rear toe angles
- Includes massive oversized bearings
- Matching Front Left & Front Right A-arms are available
- Matching Front Axle Carriers are available

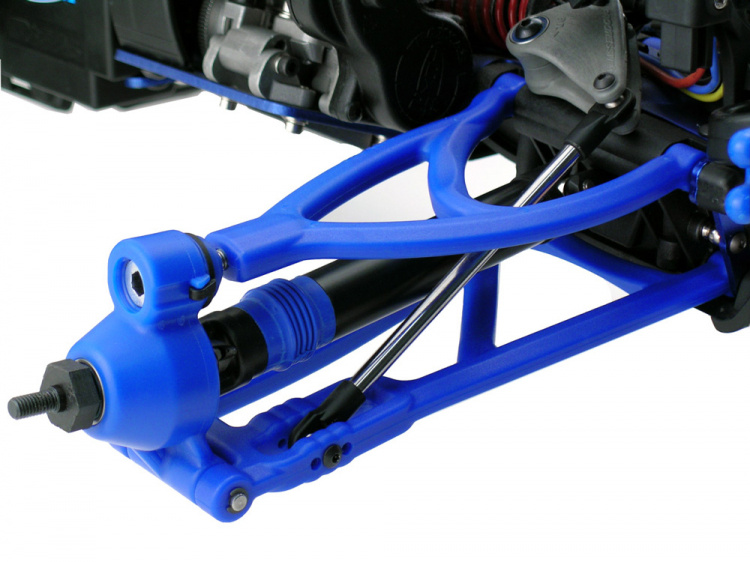

The RPM True-Track Rear A-arm Conversion Kit for the Revo eliminates some of the biggest headaches associated with toe link rear ends. Rear toe angles are nearly impossible to set accurately and there isn’t a gauge currently made that can accurately identify whether each individual wheel’s toe angle is set correctly in relation to the chassis. The RPM True-Track rear end kit completely eliminates the rear toe links, locking in the rear toe angle at a solid 1.5 degrees per side for a total rear toe-in angle of 3 degrees. By getting rid of the rear toe links, we’ve completely eliminated all rear bump steer! That means the rear toe angle remains consistent throughout the entire range of suspension travel, providing superior rear end tracking regardless of the terrain. Identical to our T/E-Maxx True-Track Kit, the Revo True-Track Kit retains the stock upper pivot ball in the new, ultra beefy RPM axle carrier to allow precise camber adjustments while the lower pivot ball has been eliminated in favor of a rock-solid 4mm diameter hinge pin that locks in the rear toe angles for race winning consistency (hinge pin replacement part #80970). All aspects of the RPM True-Track Conversion Kit have been beefed up for rugged durability and slop free movement throughout its range of travel. Additionally, we’ve incorporated our oversized bearings into the new RPM axle carrier design, providing an additional 2mm more bearing contact with the axle while doubling the bearing load rating & tripling the fatigue rating over the stock bearings.
So does all this come at a cost of added weight? The RPM Revo True-Track Rear A-arm Conversion Kit actually weighs LESS than the stock components it replaces! How much less? 16 grams PER SIDE! That’s a total weight loss of 32 grams or 1-1/8 ounces! That means you get perfect rear toe angles, added A-arm strength, bearings that are more durable & longer lasting, an unbeatable breakage warranty and a reduction in weight! What more can anyone ask for?

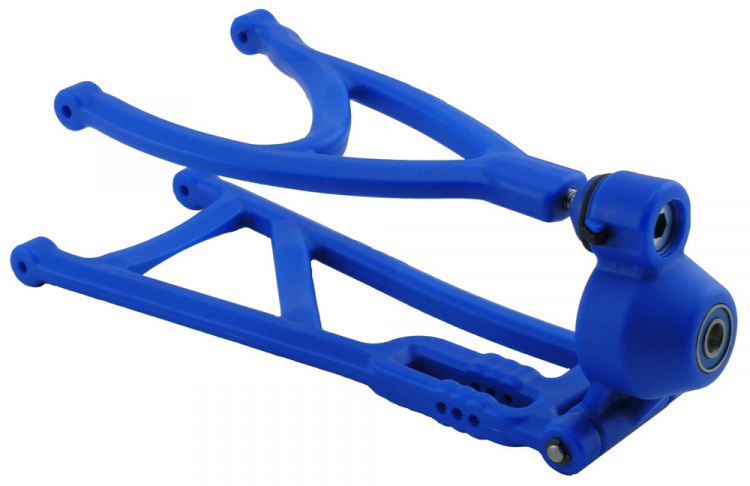

What’s Included: Our Revo True-Track Rear End Kit consists of two upper rear A-arms, two lower rear A-arms, two beefy rear axle carriers, two outer 6x15mm sealed bearings, two inner 12x21mm sealed bearings, two aluminum pivot ball setscrews, two delrin pivot ball bushing cups, two M3x16mm shock mount screws, two 4mm diameter tool steel hinge pins & enough e-clips to get the job done (4 minimum).
RPM Recommendations: The RPM True-Track System is designed to match RPM A-arms (Part #80212 & #80215 – Right Side & #70372 & #70375 – Left Side) & Axle Carriers (#80582 & #80585 – 1 package needed) currently available for the Revo. With the True-Track system mounted at the rear and a set of RPM replacement A-arms & Axle Carriers up front, you are assured the best & most indestructible A-arm / Axle Carrier combination possible!
To prolong the life of your bearings, RPM recommends the use of our #81170 Bearing Blaster. For accurate camber adjustments, please consider the use of our #70950 Monster Camber Gauge.
Tech Notes: These rear end kits work on all earlier versions of the Traxxas Revo (does not fit the Revo 2.0). One kit will complete the entire rear end. These kits will not work in conjunction with Traxxas (#5356) 120-LT Long Travel Rockers.
