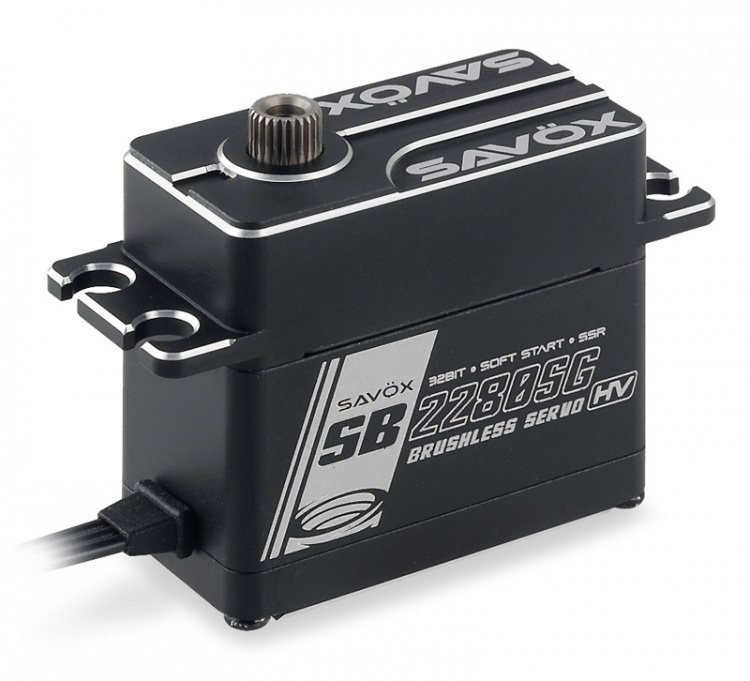

SAVÖX SB-2280SG - High Voltage Brushless Steel-Geared Monster Torque Servo
Features:
- New PCB, updated MCU from 8-bit to 32-bit
- All aluminum case and new design
- Soft start and SSR accepted
- Ultra Torque
- High Voltage
Specifications:
- Torque @ 6V: 40kg/cm
- Torque @ 7.4V: 50kg/cm
- Torque @ 8.4V: 60kg/cm
- Speed @ 6V: 0.17sec/60deg
- Speed @ 7.4V: 0.14sec/60deg
- Speed @ 8.4V: 0.12sec/60deg

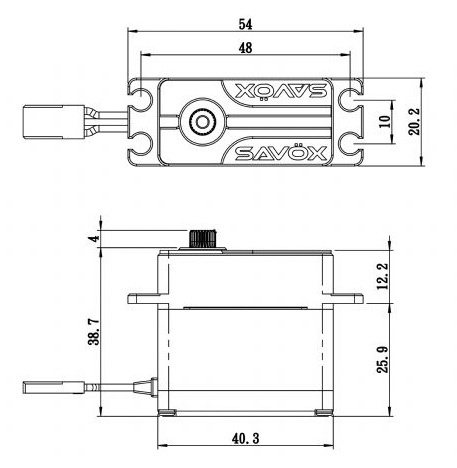

- Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
- Weight: 83g
Technical Details:
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 3BB
- Motor Type: Brushless
