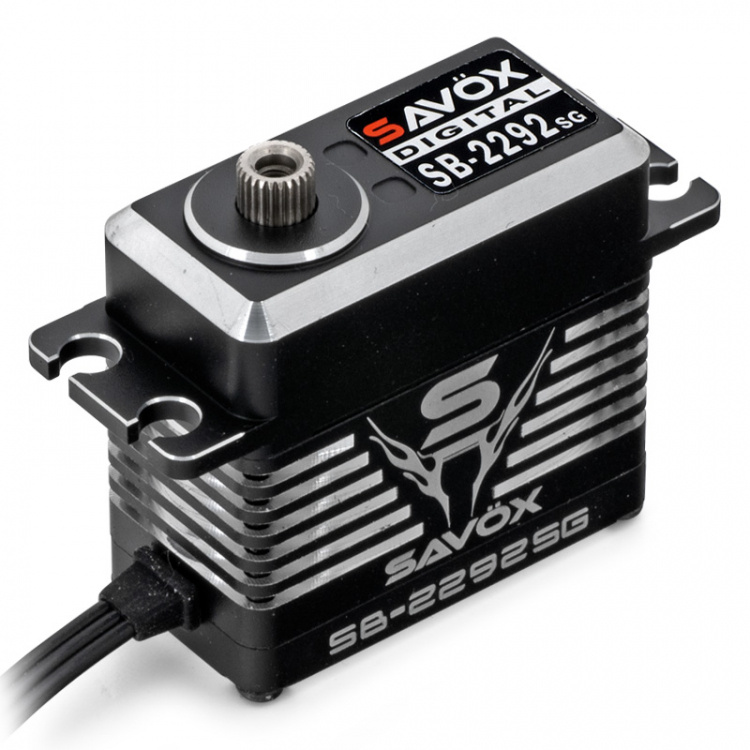

SAVÖX SB-2292SG - Monster Starkt HV Brushless Servo med Ståldrev
The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.Features:
- High Voltage
- Full Aluminum Case
- 3 Precision Ball Bearings

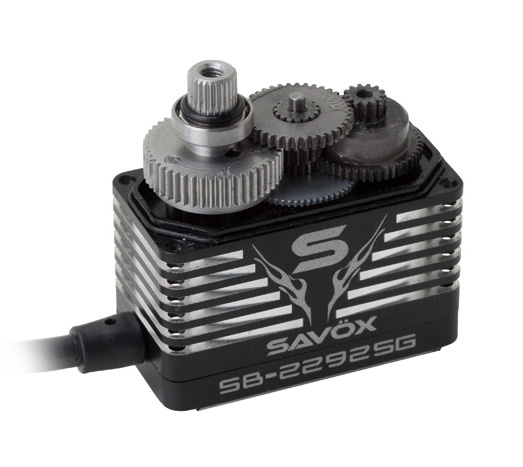

- Unique steel gears
Specifications:
- Torque @ 6V: 26kg/cm
- Torque @ 7.4V: 36kg/cm
- Torque @ 8.4V: 50kg/cm
- Speed @ 6V: 0.085 sec/60 deg
- Speed @ 7.4V: 0.07sec/60 deg
- Speed @ 8.4V: 0.055sec/60 deg

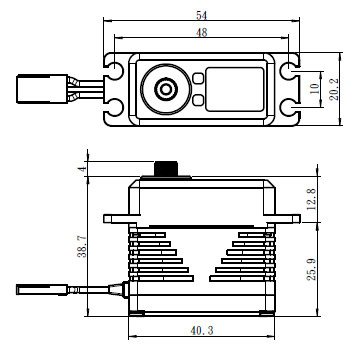

- Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 180mA @6.0V, 220mA @7.4V
- Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 3BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
Included:
- Mounting hardware
- Plastic servo arms: 4pcs
- Aluminium servo arm: 1pcs 1-arm
- Decals
