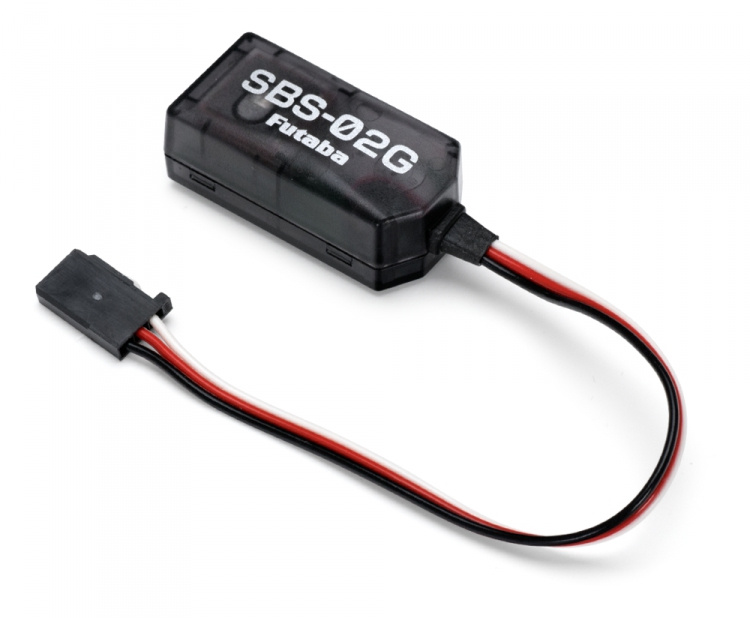

This sensor, used in conjunction with a telemetry enabled transmitter/receiver, is used to indicate the distance/ speed/ altitude of the item to which it is attached.
LED indication:
- Green: Normal operation
- Green blink: GPS un-receiving
- Red: No signal reception
- Green/Red: When setting up the slot
- Green/Red Alternate blink: Unrecoverable error
Specs:
- Use: GPS/Altitude sensor (from atmospheric pressure) with Vario meter
- Length: 175 mm
- Weight: 11g
- Voltage: DC 3.7 ~ 7.4V
- Frequency: 1575.42 MHz
- Speed: About 0~500 km/h
- Altitude: About -700 ~ +5.500 m sensor spec
- Vario meter: About -150 ~ +150 m/s
