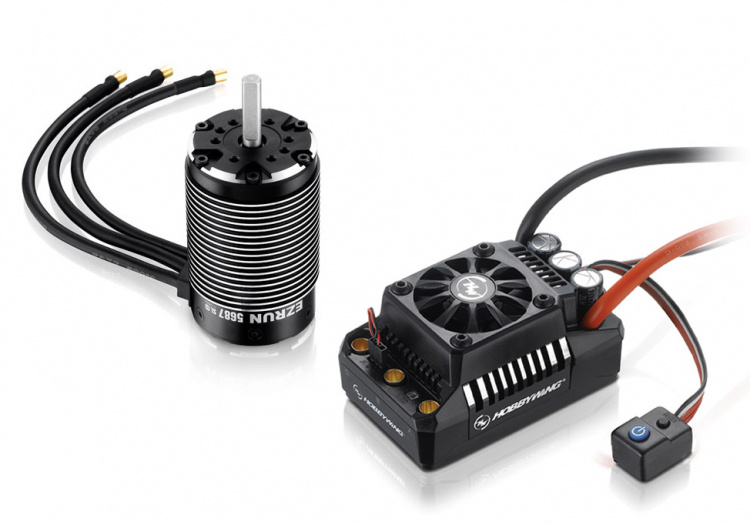

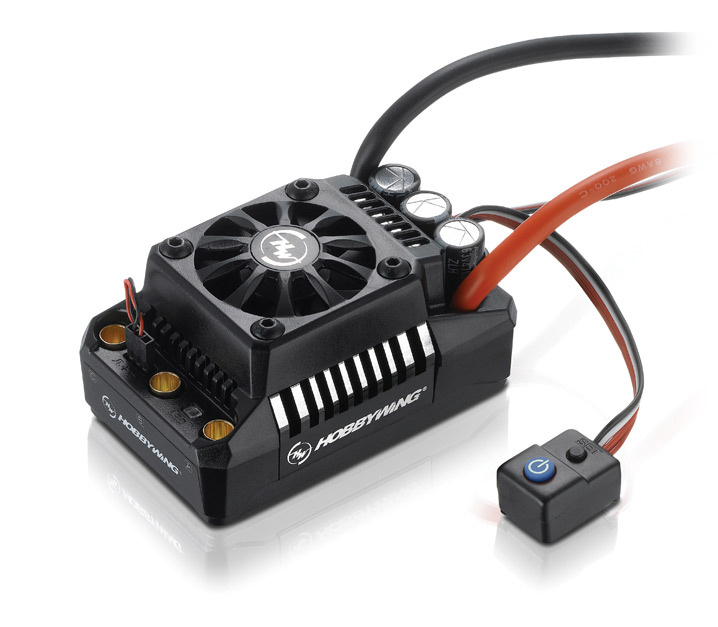

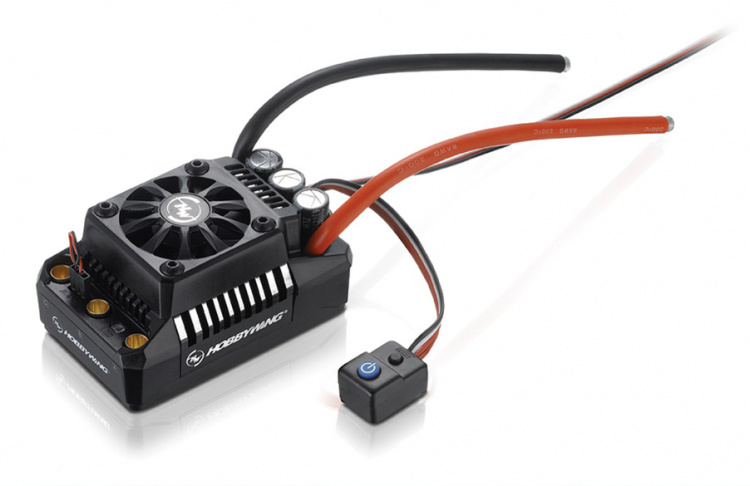

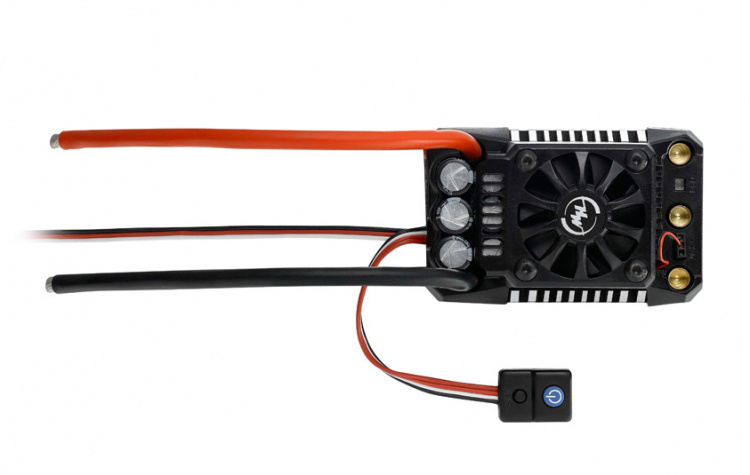

Hobbywing EzRun MAX5 Fartreglage & 5687SL-1100KV Motor Combo Set

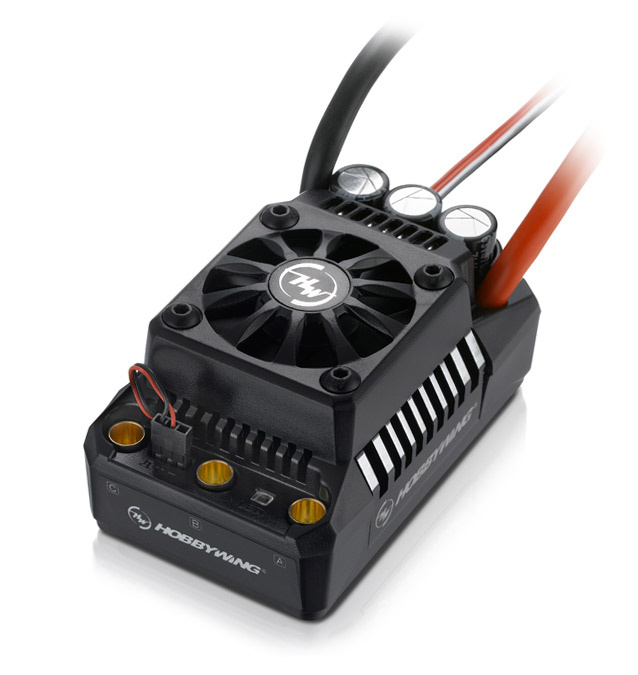

Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX5 is able to deliver unmatched power and performance for even the most hardcore of racing applications. This combo set also includes the powerful EzRun 5687-1100KV sensorless brushless motor that is a good choice for applications where the EzRun 56133-800KV notor is too big and the EzRun 4985-1650KV doesn’t give you enough power.EzRun MAX5 ESC Specs:

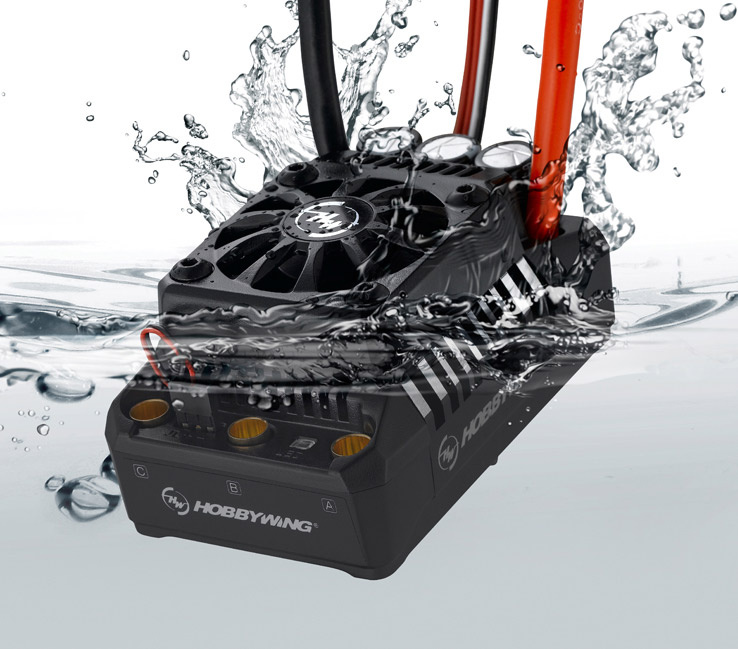

- Type: 1/5 scale, Brushless, Sensorless, Waterproof ESC
- Cont./Peak Current: 200A/1300A
- Input Voltage: 3-8S LiPo / 9-24 Cells NiMH
- BEC Output (Switch Mode): 6V/7.4V - 6A
- Input Wires: 8AWG-200mm
- Output Wires: 10AWG-200mm
- Input Connectors: No
- Output Connectors: 6.5mm Female Gold Connectors (pre-soldered onto the PCB)
- Fan Size: 45x45x10mm
- Fan Voltage Range: 5-7.4V
- Fan Powered by: BEC
- Firmware Upgrade: Supported
- Size: 93.4x58.1x47.8mm
- Weight: 342g

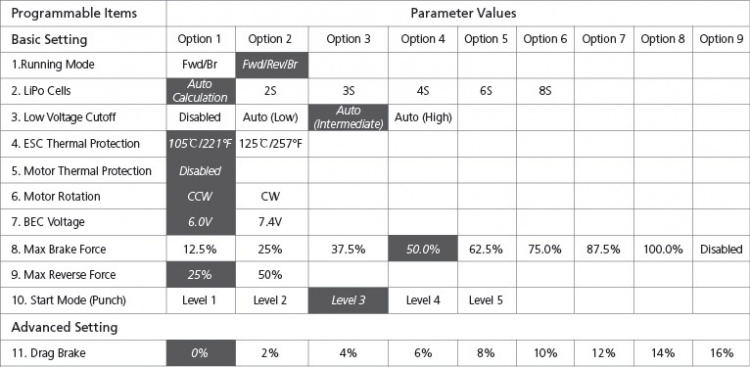

EzRun MAX5 ESC Programing via:
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD Program Box: Supported
- WiFi Module: Supported
- OTA Programmer: Supported
- Program Port: FAN/Program Port
EzRun MAX5 ESC Applications:
- Motors: Sensoreless/Sensored Brushless (only in Sensorless mode)
- Vehicles: 1/5 Touring Cars/Buggies/Trucks
- KV Rating/T Count: 8S LiPo: KV ≤ 1000 (58110 Size Motors)

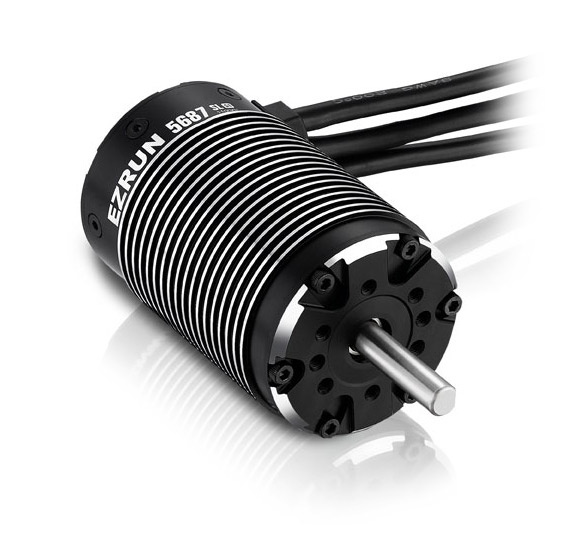

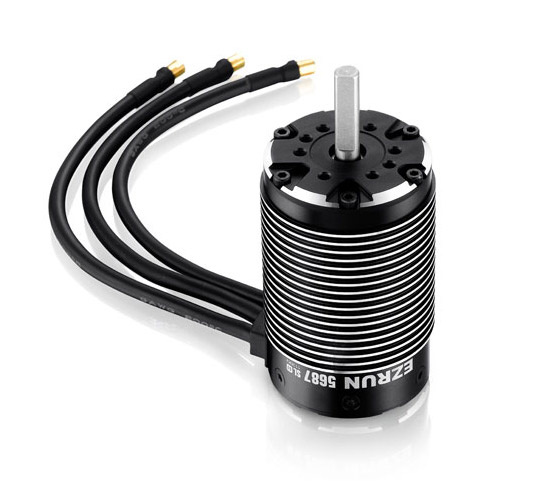

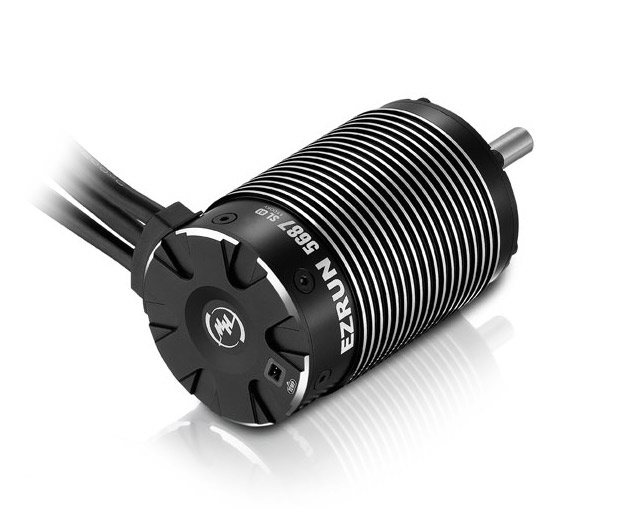

EzRun 5687SL-1100KV Motor Specs:
- Type: 1/5 scale, Brushless, Sensorless Motor
- Pole Count: 4
- Kv Rating: 1100
- LiPo Cells: 3-8S
- No Load Current: 4.1A
- Weight: 916g
- Case Diameter: 56mm
- Case Length: 88.5mm
- Output Shaft Dia: 8mm
- Output Shaft Length: 31mm
- Front Bearing: D8xD22xT7mm (608DD)
- Rear Bearing: D8xD22xT7mm (608ZZ)
- Input Wires: 8AWG-200mm
- Input Connectors: 6.5mm Bullet
