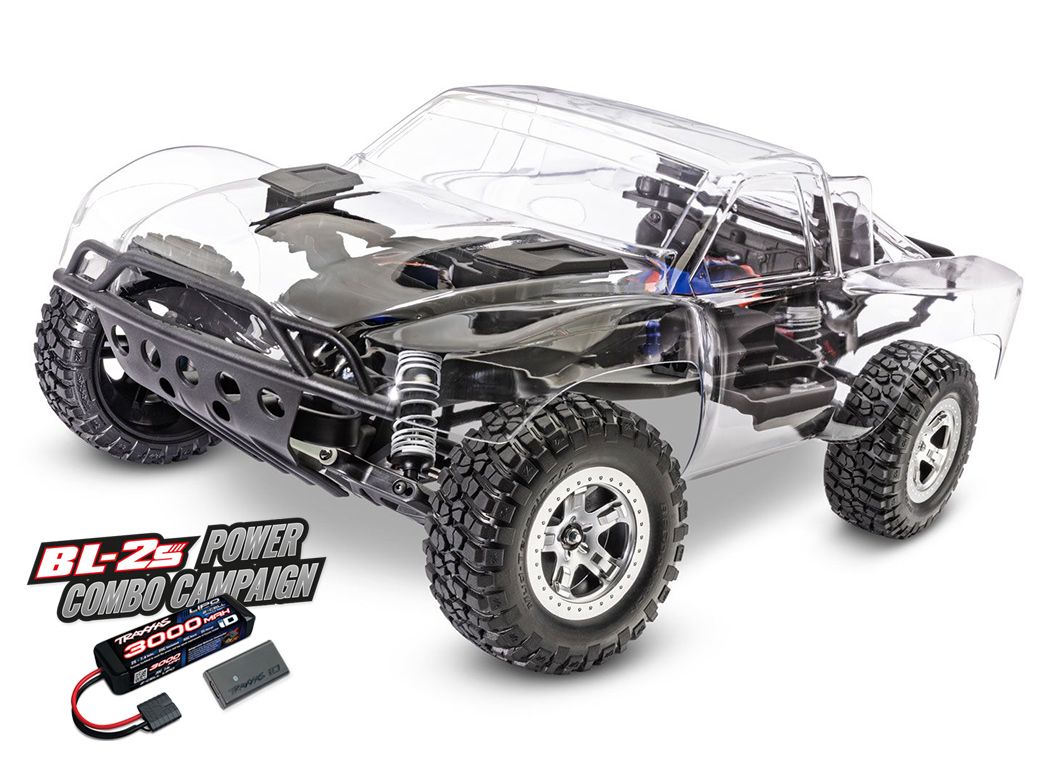

Traxxas 58314-4 - Slash® 2WD Brushless BL-2s EHD Clipless Unassembled Kit
Traxxas Slash® puts you in the driver’s seat for intense fender-to-fender short course racing action at the track, or in your own backyard. Slash’s all-new BL-2s™ brushless power system delivers effortless power for all-day fun with a more responsive throttle and powerful acceleration. In addition to brushless power, Slash comes fortified with Traxxas’ Extreme Heavy Duty components to take even the most brutal punishment in stride. Slash's fully adjustable track-ready suspension replicates real-world dynamics for the most authentic short course racing experience possible.
The Slash Assembly Kit adds a fun and exciting dynamic to your RC experience. Build your Slash from the ground up with all the required parts and electronics included in the box. Battery and charger sold separately. Slash includes the convenience of a TQ™ 2.4 GHz radio system, powerful and efficient BL-2s brushless power system, and a convenient and secure clipless body. All the parts are organized neatly in labeled bags with a fully illustrated color manual to make building rewarding and fun. The Slash assembly kit is perfect for drivers of almost any age or skill level. Build one yourself and experience RC fun the Traxxas way—fast, fun, and easy to use!
WHAT'S INCLUDED IN THE KIT:
- Unassembled Slash 2WD chassis
- TQ™ 2.4 GHz radio system
- Waterproof BL-2s electronic speed control
- BL-2s 3300 kV brushless motor
- Extreme Heavy Duty suspension and driveline components
- Waterproof high-torque steering servo
- BFGoodrich® Mud-Terrain T/A® tires with foam inserts, mounted on satin chrome 5-spoke wheels
- Clipless clear Slash body with decals and window masking
- Full-color step-by-step assembly manual
Now With Brushless Power!
The new BL-2s brushless power system is an absolute game-changer with 15% more speed, quicker acceleration, and a more responsive throttle. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow Slash to run battery after battery for all-day race sessions. With no brushes to wear out, the BL-2s 3300 kV motor can last the entire racing season with minimal maintenance.
Easy to Follow Assembly Instructions
The Slash 2WD Assembly Kit isn't just for expert hobbyists. Traxxas goes the extra mile to make the full-color instruction book easy to follow and fun to use. Each section corresponds to a labeled bag with step-by-step assembly instructions. True-to-scale part illustrations and ruler charts make it easy to differentiate between different screws, bearings, and gears. Helpful assembly tips and clear illustrations take the frustration out of the assembly process. Have fun on the workbench and in the dirt with the new Slash 2WD kit.
WHAT YOU'LL NEED
- Battery with Traxxas High-Current Connector
- 6 or 7 cell NiMH battery pack
- 2s LiPo battery pack
- Battery charger
- Metric hex drivers: 1.5 mm, 2.0 mm, 2.5 mm
- Basic hand tools; Screwdrivers, needle nose pliers
- Safety glasses
- Polycarbonate paint
Ready to Assemble
The Slash 2WD kit arrives ready to assemble with a clipless clear body and full-color instruction guide to make building rewarding and fun. A staff of skilled representatives is on hand to answer your questions via phone, website, or e-mail. Unmatched parts support keeps your Traxxas vehicle running strong with parts and support from thousands of hobby dealers worldwide. Traxxas goes the extra mile to ensure that your RC experience is easy and fun.
SLASH KIT (58314-4) SPECS
- Length: 568mm
- Width: 296mm
- Weight: 2.16kg
- Height (overall): 214mm
- Wheelbase: 335mm
- Front Shock Length: 88mm - long
- Rear Shock Length: 101mm - XX-long
- Tires: BFGoodrich® Mud-Terrain T/A®
- Wheels: 2.2" satin-finish
- Speed Control Type: Waterproof BL-2s™ brushless
- Motor (electric): BL-2s 3300 kV brushless
- Gear Ratio (internal): 2.72 (final drive: 12.58)
- Differential Type: Steel composite planetary
- Gear Pitch: 48
- Transmission: Metal gear Magnum 272™
- Steering: Bellcranks
- Chassis Type: Modified tub
- Chassis Material: Composite Nylon
- Center Ground Clearance: 89mm
- Top Speed: 56+ kph
- Svårighetsnivå: 1
- Radio System: TQ™ 2.4 GHz (2-channel)
- *Battery Tray Dimensions: 165x50x23/25mm
- Required Batteries 4 "AA" (transmitter), Traxxas Power Cell Battery (7-cell NiMH or 2-cell LiPo)
BL-2s BRUSHLESS ESC SPECIFICATIONS
- Input voltage: 6-7 Cells NiMH or 2s LiPo (6.0 to 8.4 volts)
- Case Size: 39x59x31mm
- Weight: 87g
- BEC Voltage: 6.0 volts
- Reverse Delay: Yes, with lockout
- Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
- Thermal Protection: Thermal shutdown
- Single-button setup: Traxxas EZ-Set®
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode: 50% FWD, 100% brakes, 50% REV
BL-2s BRUSHLESS MOTOR SPECIFICATIONS
- Motor Type: Sensorless brushless
- Weight: 213g
- Length: 80mm
- Diameter: 36mm
- Connector Type: Traxxas Quick Connect Motor Plug
